Disk Usage

functional

The selected database's file layout - logical files, size, max, and growth.

Opened from a database, Disk Usage shows just that database's file layout: each logical file, its type, physical path, current size, maximum size (blank when unlimited), and growth setting rendered as a percentage or a fixed megabyte step. The per-file view reads sys.database_files on SQL Server and Azure SQL. On engines that do not expose a file layout, the tool shows the per-database sizes overview instead of an empty tab.

Scope-aware. This is the single-database view. Open Disk Usage from the server node instead for the all-databases overview. See Disk Usage (server).
SQLly
SQLly database-scoped Disk Usage files listSQLly database-scoped Disk Usage files list

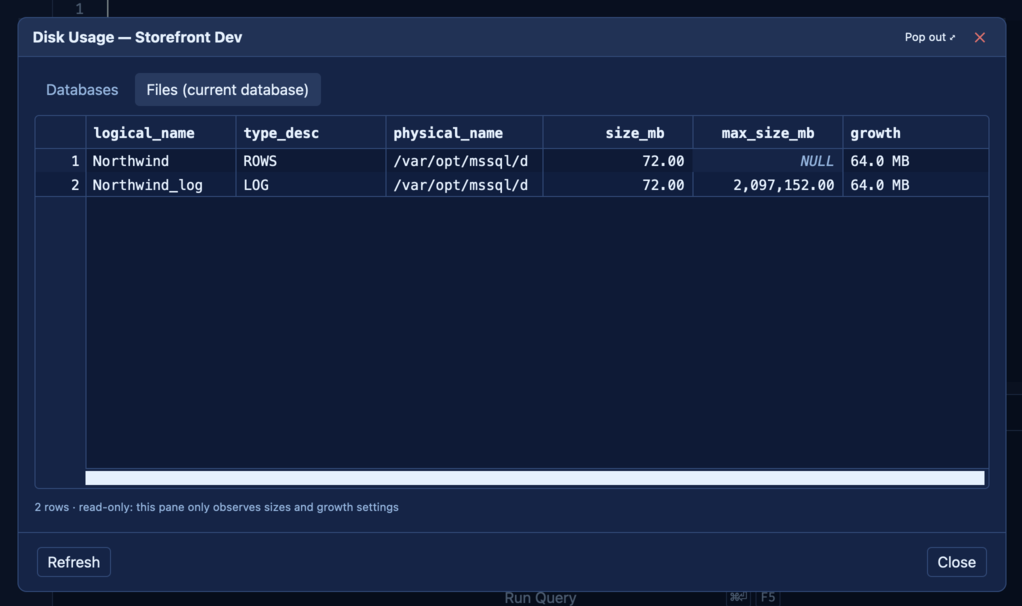

Database Disk Usage: the Files tab listing one database's data and log files with their sizes and growth.

Opening it

  1. In the explorer, right-click the database you care about.
  2. Choose Tools › Disk Usage.... If that database is on a different connection, or is not the current database, SQLly switches to it first, so the numbers are always for the node you clicked.
  3. Press Refresh to re-read the sizes at any time.

Disk Usage... in the command palette opens the server-wide view rather than this one. The dialog can pop out into its own window, which is handy when you want to keep an eye on a file while a load or rebuild runs in a query tab.

Reading the Files tab

ColumnWhat it means
logical_nameThe file's logical name - the one you would use in ALTER DATABASE ... MODIFY FILE.
type_descROWS for data files, LOG for the transaction log, and so on.
physical_nameThe path of the file on the server.
size_mbCurrent allocated size, in MB.
max_size_mbThe growth ceiling in MB, or blank (NULL) when the file can grow without limit.
growthThe autogrow step: a percentage such as 10%, or a fixed step such as 64.0 MB.

Files are listed by type, then name, so the data files come first and the log follows. A typical use is checking an unexpectedly large log: if size_mb is far above the data files and growth is a small fixed step, the log has been autogrowing in many small increments.

What other engines show

  • ClickHouse - the Files tab lists the server's storage disks from system.disks instead: name, type, path, used space, and total space. Growth is blank.
  • PostgreSQL, MySQL and MariaDB - no per-file layout, so you get the per-database sizes overview (size and owner on PostgreSQL; data, index, and free MB per schema on MySQL and MariaDB).
  • SQLite and libSQL / Turso - the database's size, reclaimable free-list space, page count, and page size.
  • DuckDB - one row per attached database from pragma_database_size(): size, reclaimable space, WAL size, and memory use.
  • Oracle Database - the space your own schema's segments use, per tablespace, split into table, index, and LOB MB.
  • Redis - memory per logical database: key and expiry counts, plus an estimate scaled from a bounded MEMORY USAGE sample (up to 200 keys per database), with the largest key found.

The full per-engine column list for the overview is on the server Disk Usage page.

Safety and limits

Disk Usage is strictly read-only: it runs SELECT queries over the engine's catalog and never resizes, shrinks, or changes growth settings. The footer says so, along with the row count. To change a file, write the ALTER DATABASE yourself in a query tab.

On PostgreSQL, databases your login cannot connect to show a blank size rather than failing the whole list. If a query does fail, for example on missing permissions, the engine's error text is shown in the pane.
