Designers

functional

Visual object designers for building and altering database objects without hand-writing DDL.

Visual designers for building and altering database objects, so routine structure work does not mean hand-writing DDL and hoping you got every clause right. There are three related surfaces:

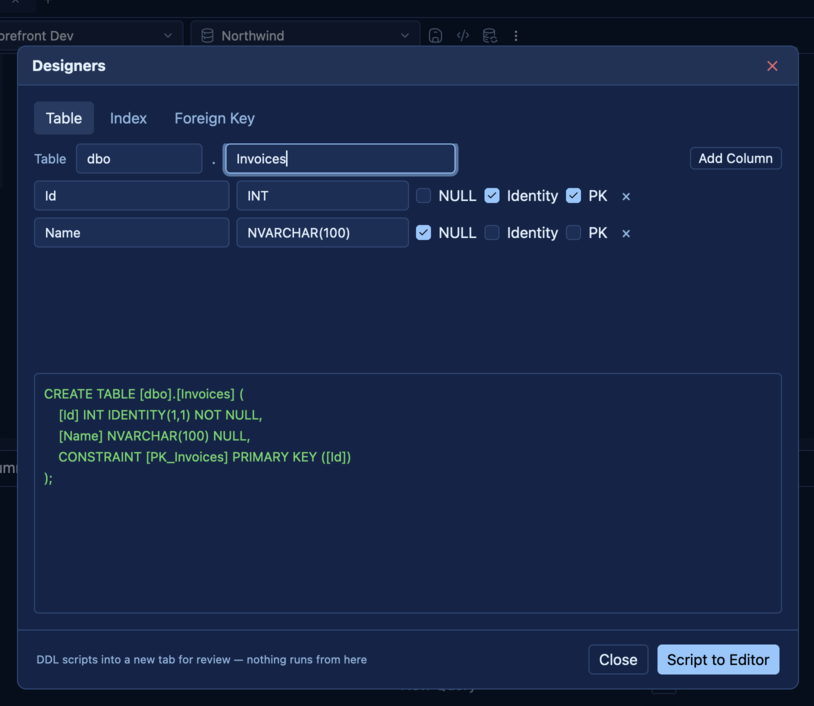

  • Designers - a create-new dialog with Table, Index, and Foreign Key tabs. Tables get a column grid (name, type, NULL / Identity / PK checkboxes); indexes get key and include columns, a filter clause, fill factor, and unique/clustered flags; foreign keys get the child and parent sides. A live preview shows the resulting DDL - green when valid, or the reason it is not, and Script to Editor hands it to a tab. Nothing runs from here.
  • Edit Structure, an ALTER designer for an existing table, with Columns, Indexes, and Foreign Keys tabs and a live change-diff instead of raw SQL. It knows the engines' quirks: MySQL exposes ALGORITHM and LOCK choices for online DDL, and PostgreSQL type changes get a USING cast filled in automatically. Also script-first.
  • Object properties
  • - a paged property editor for thirteen object kinds, from server down to column, with rename and nullability edits. It is the one designer that can execute, and only behind a Review changes sheet that shows the exact SQL with Copy / Cancel / Execute. Engine coverage: the guidedDesigners
generate SQL Server / Azure SQL DDL only, and say so elsewhere (on ClickHouse, for instance, the hint is to write CREATE TABLE … ENGINE = MergeTree in a query tab). Edit Structure works on SQL Server, PostgreSQL, MySQL/MariaDB, SQLite, libSQL / Turso, DuckDB, ClickHouse (where it covers ADD / DROP / RENAME / MODIFY COLUMN and data-skipping indexes, and flags key changes for manual review), and Oracle Database (Oracle's own ADD, MODIFY, DROP and RENAME COLUMN and constraint changes). Redis keys have no structure to edit.
SQLly
SQLly object designerSQLly object designer
Designers: a visual editor for a database object's structure.
