Chart

✓ functional

Tell the Chart tab what story to draw before the result even arrives.

The chart directive prepares the result's Chart tab from a comment. It is the same chart you can configure interactively, but the setup travels with the query and comes back on every run. Use a view directive to open the Chart tab and a chart directive for the type, labels, series, and aggregation.

Syntax

-- sqlly view: chart
-- sqlly chart: kind:<type>[; label:<col>][; values:<cols>][; aggregate:<agg>][; order:<order>][; top:<n>][; navigate:<true|false>]

Fields are separated by ; and written as key:value; order does not matter. Only kind: is required, and the rest use the chart's defaults when omitted. Column names are flexible, so [Region], `Region`, and "Region" all resolve to the same column.

Field	Meaning
`kind:`	The chart type: `bar`, `line`, `area`, `scatter`, `histogram`, `pie`, or `donut` (required).
`label:col`	Column whose values label the categories. Defaults to the first text column.
`values:col[,col…]`	Numeric column(s) to plot as series. Defaults to auto-detecting the numeric columns.
`aggregate:agg`	Collapse rows per category: `none`, `sum`, `average`, `minimum`, `maximum`, or `count`. (`avg`/`min`/`max` also accepted.)
`order:order`	Category order: `source`, `category` (A–Z), or `value` (high–low).
`top:n`	Keep at most n categories after ordering.
`navigate:true\|false`	Clicking a mark selects its source rows on the Grid tab (default `true`).

Examples

-- sqlly view: chart
-- sqlly chart: kind:bar; label:Region; values:Sales
SELECT Region, Sales FROM sales;

For two series, summed per category and shown largest first:

-- sqlly view: chart
-- sqlly chart: kind:line; label:Month; values:Revenue,Cost; aggregate:sum; order:value; top:12
SELECT Month, Revenue, Cost FROM monthly;

Chart types

Each kind: value draws a different mark. The gallery below names what to expect; its screenshot placeholders are waiting for their real captures.

A SQLly bar chart — kind:bar - grouped bars around a zero baseline, one bar per series per category.

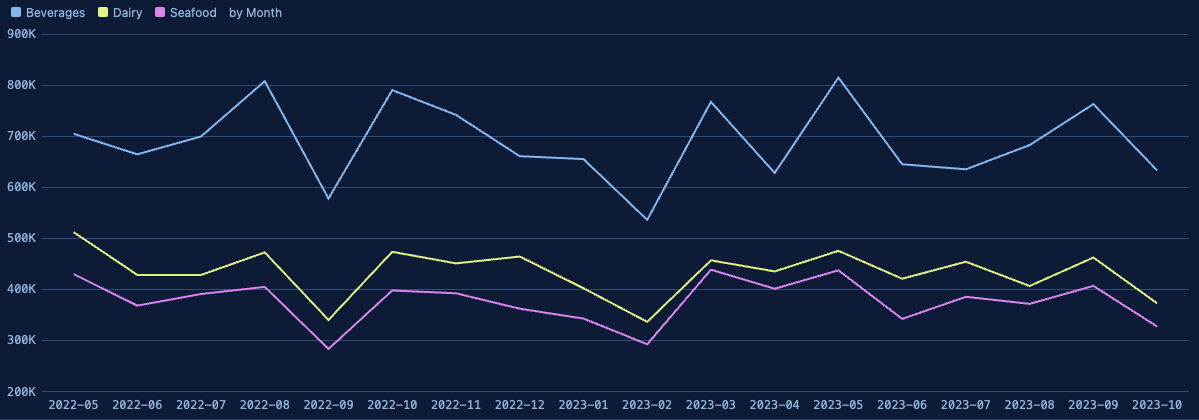

A SQLly line chart — kind:line - one polyline per series, with gaps at NULLs.

A SQLly area chart — kind:area - filled polylines on a zero-floored axis.

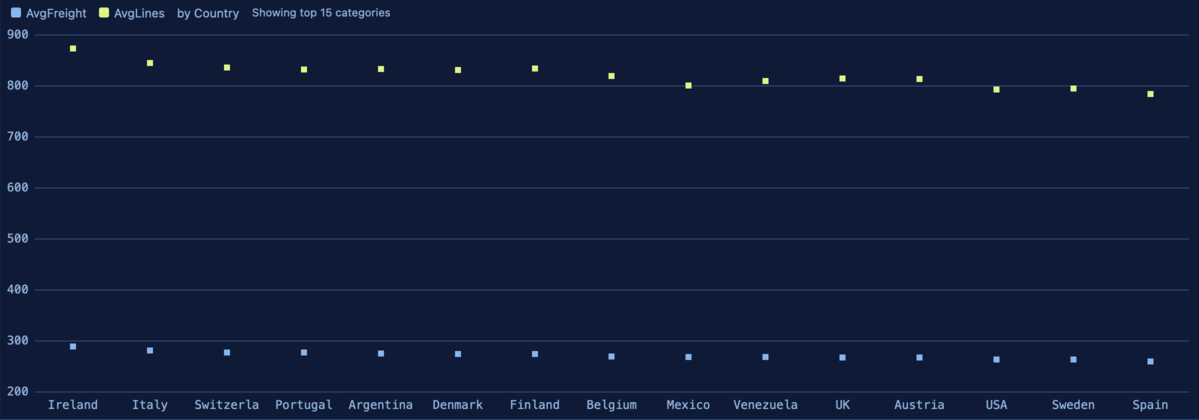

A SQLly scatter chart — kind:scatter - per-category point markers, good for spread.

A SQLly histogram — kind:histogram - nice-edged bins of a single numeric column.

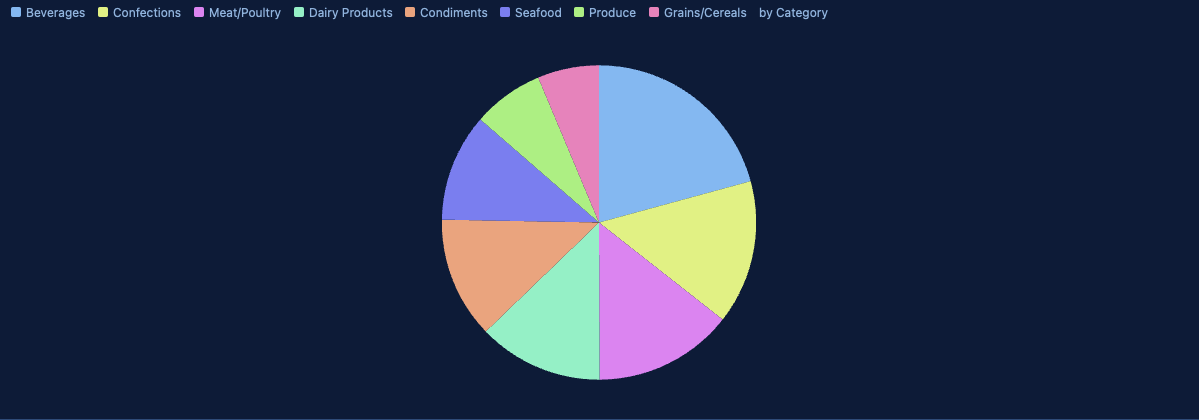

A SQLly pie chart — kind:pie - radial shares of a single non-negative series.

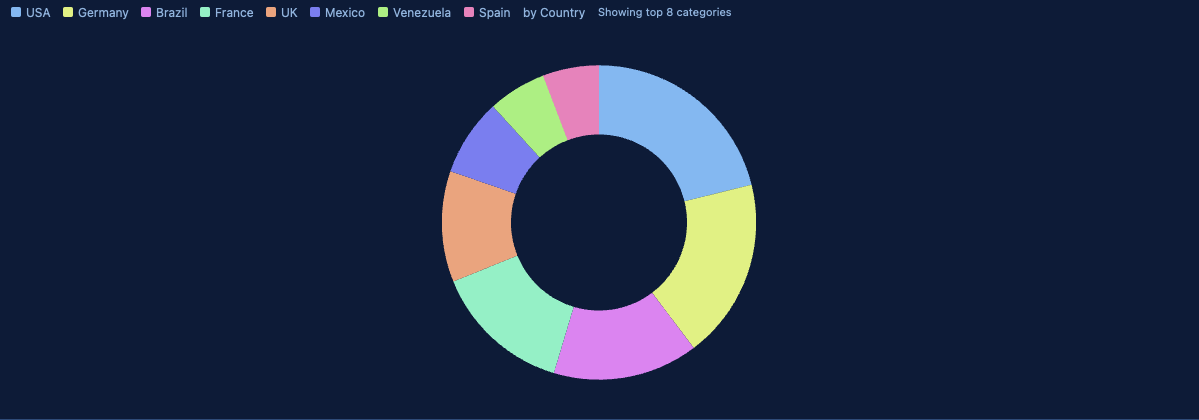

A SQLly donut chart — kind:donut - a pie with the center hollowed out.

Use standalone comment lines. Put view: chart on the first non-empty line of the query; chart: can live on any comment line of its own. When several valid chart hints exist, the last one wins.
